In modern industrial pipeline systems, hinged expansion joints have become a critical component for ensuring safe and stable operations due to their unique design and exceptional performance. They effectively compensate for pipeline displacement caused by thermal expansion, mechanical vibrations, or external loads while withstanding high-pressure and high-temperature environments, making them indispensable in many industrial fields.
Solving Pipeline Displacement Issues

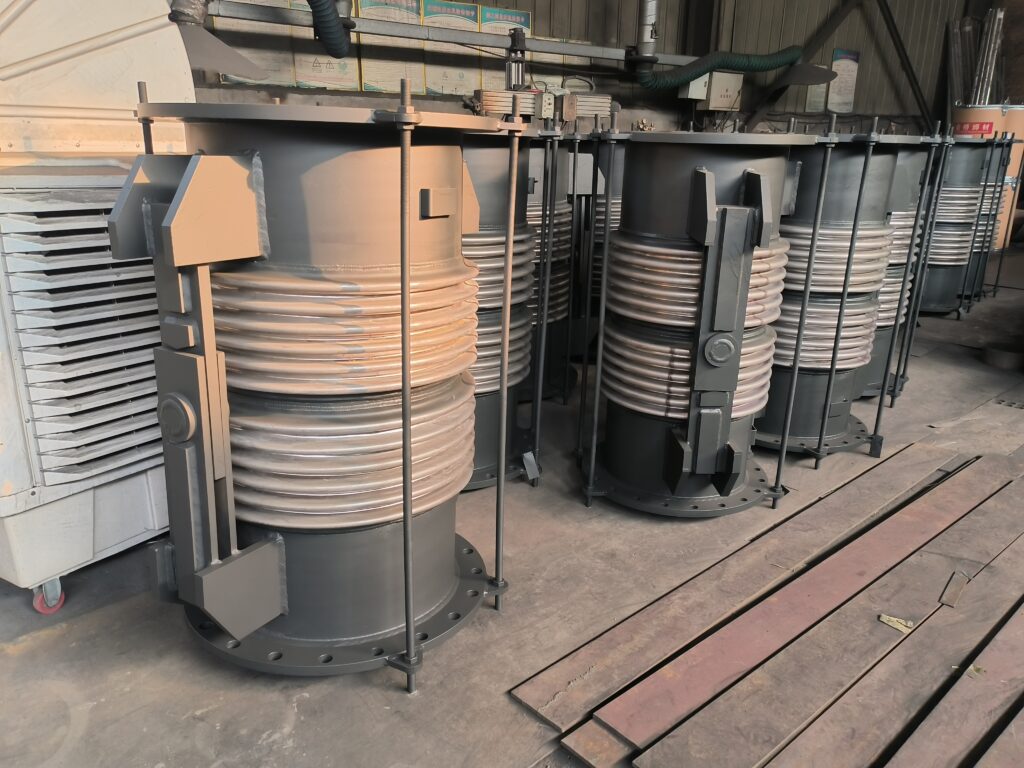

During operation, pipeline systems often experience displacement due to temperature changes, pressure fluctuations, or external mechanical forces. Without proper compensation, this displacement can lead to stress concentration, leaks, or even damage. Hinged expansion joints, with their hinge structure and flexible bellows design, can precisely absorb angular displacement and balance pipeline stress, thereby preventing system failures.
Withstanding High Pressure and Temperature
Hinged expansion joints are typically made of high-strength materials such as stainless steel, offering excellent corrosion resistance and fatigue performance. Their hinge structure distributes pressure and thrust forces in the pipeline system, reducing the load on fixed supports. This makes them suitable for high-temperature and high-pressure environments, such as those in petrochemical plants and power generation boilers.
Reducing Vibration and Noise
Mechanical vibrations and fluid impacts in pipeline systems can generate noise and accelerate equipment wear. Hinged expansion joints, with their elastic properties, effectively absorb vibration energy, reduce noise levels, and extend the lifespan of pipelines and equipment.
Easy Installation and Maintenance
The compact design of hinged expansion joints makes them easy to install, significantly reducing construction difficulty and costs. Additionally, their durability and low maintenance requirements minimize downtime and maintenance expenses during operation.
Wide Range of Applications
Hinged expansion joints play a vital role in various industrial fields:
- Petrochemical Industry: Used in high-temperature and high-pressure pipelines to compensate for thermal expansion.
- Power Generation Industry: Applied in steam pipelines and boiler systems to reduce thermal stress.
- Metallurgical Industry: Utilized in blast furnaces and hot air pipelines to withstand high temperatures and vibrations.
With their precise displacement compensation capabilities, high load-bearing performance, and fatigue resistance, hinged expansion joints have become indispensable components in pipeline systems. They not only address complex engineering challenges but also enhance system safety and reliability. As industrial technology advances, the application scope of hinged expansion joints will continue to expand, providing efficient solutions for more industries.
