What is the flange thickness standard of stainless steel metal expansion joint

2021.02.22

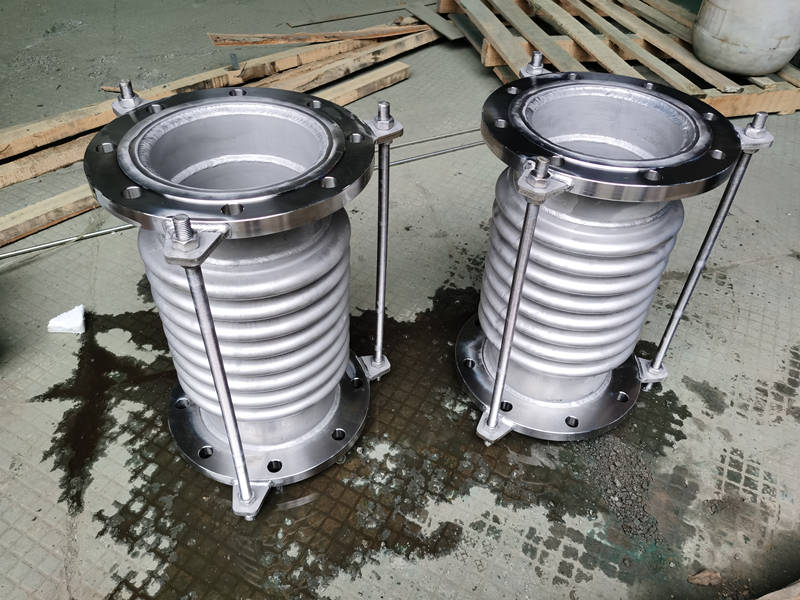

Stainless steel metal flange corrugated compensator angle iron flange generally chooses 70*6 angle iron with a thickness of 6 mm.
The flange of the corrugated compensator with round stainless steel metal flange with thickness greater than 6mm and width greater than 70mm is a spliced flange. If there is no requirement, try to choose a flange with a width less than 70mm and a thickness less than or equal to 6mm.
The thickness of the matching flange for round flanges larger than DN2000 is calculated as 10mm.
Square stainless steel metal flange corrugated compensator flange can be made with a thickness of 6-10mm without requirements, and the small diameter without requirements is calculated at 6mm.
The stainless steel metal flange corrugated compensator flange of the pressure-bearing pipeline is customized according to the pipeline pressure.
The gas pipeline uses standard flanges regardless of pipeline pressure. The selection of standard flange pressure needs to be based on the pipeline pressure. If the pipeline pressure is very low, use a standard flange of 0.25MPa.
