PERFORMANCE

• 


  Advantages:

  1. High temperature resistance and low temperature resistance
  2. Weather resistance
  3. Vibration and noise reduction
  4. Good sealing performance.

• 


  Application:

  PTFE metal corrugated hose is widely used in a variety of fluid medium transport soft joints are widely used in aviation, aerospace, petroleum, chemical, metallurgy, electricity, paper, wood, textile, construction, medicine, food, tobacco, energy transportation, cement , sanitary ware, LNG and CNG natural gas, central air conditioning, urban heating, etc.

• 


  Product performance :

  Since the main part of the PTFE metal corrugated hose is made of stainless steel, the hose is excellent in temperature resistance and corrosion resistance. The hose used can be selected according to the corrosiveness of the medium through which the pipe is passed, and the corrosion resistance of the hose can be ensured.
  1. The metal soft joint is made of stainless steel as a whole and has strong corrosion resistance.
  2. The hose body is hydroformed by a thin-walled stainless steel pipe body, which has strong flexibility, flexibility, bending and vibration resistance, and enhanced protection of the woven mesh sleeve to make it have higher pressure bearing capacity.
  3. The connections at the ends of the hose can also be made in addition to the threaded and flanged standards for easy connection and use.
  4. This product is not only suitable for use with rotary joints, but also widely used for flexible connections in a variety of fluid media delivery.

• 


  PTFE metal corrugated hose Main use:

  1. Transport corrosive chemical or organic solvents. (eg nitrogen water, etc.)
  2. Transport high temperature gas, hot oil and other high temperature media (such as: hot steam, heat transfer oil, etc.)
  3. Transport low temperature or ultra-low temperature media (eg liquid nitrogen)
  4. Transport medium such as water and gasoline in a high temperature environment. (eg: water vapor system and hydraulic system in steelmaking, coking, continuous casting equipment)
  5. Pipes that need to absorb or eliminate noise (eg, pump inlet and outlet).

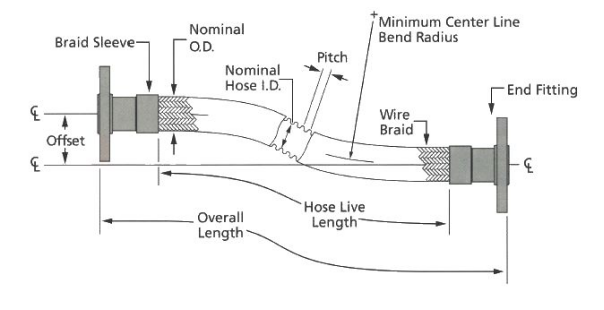

WORKING PRINCIPLE

PRODUCT PARAMETERS

NOTES:

1. Flange is available with DIN Standard,ANSI Standard,JIS Standard,and BS Standard.
2. Please sent us letter and drawing for customization if you have special requirements.

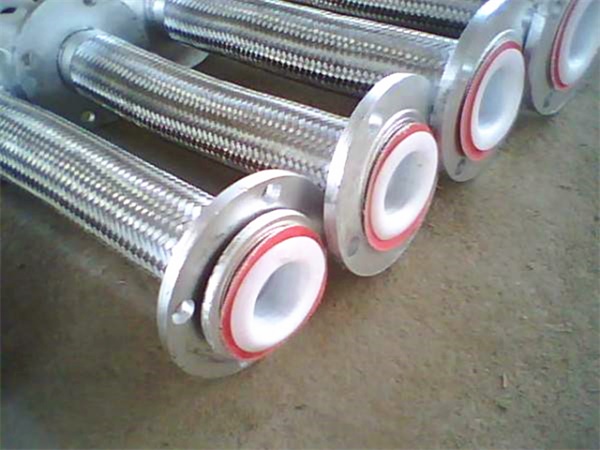

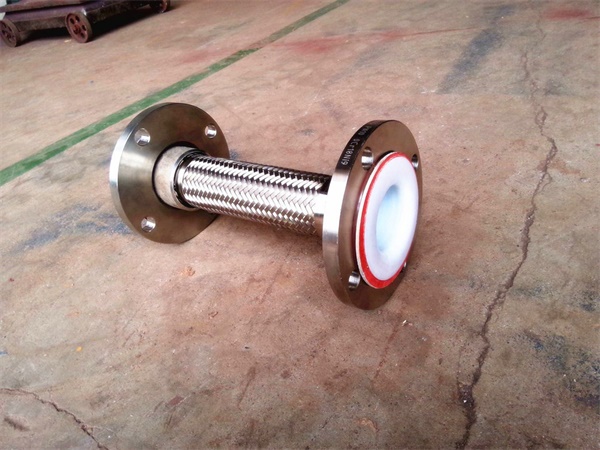

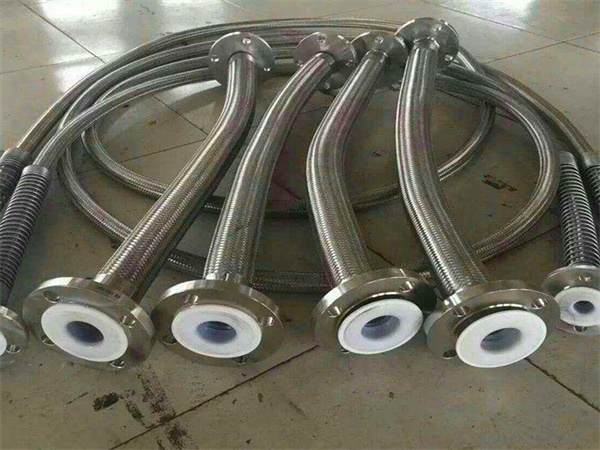

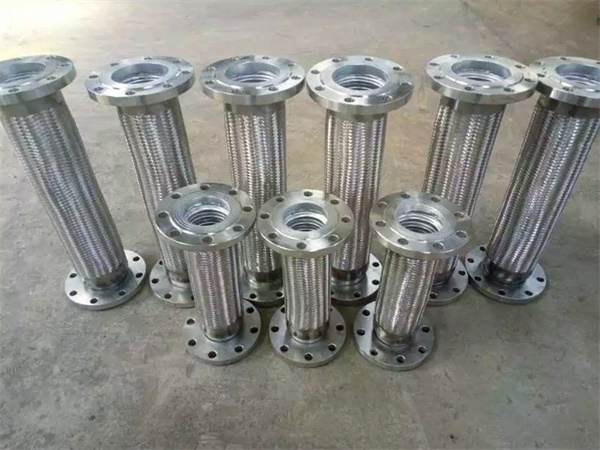

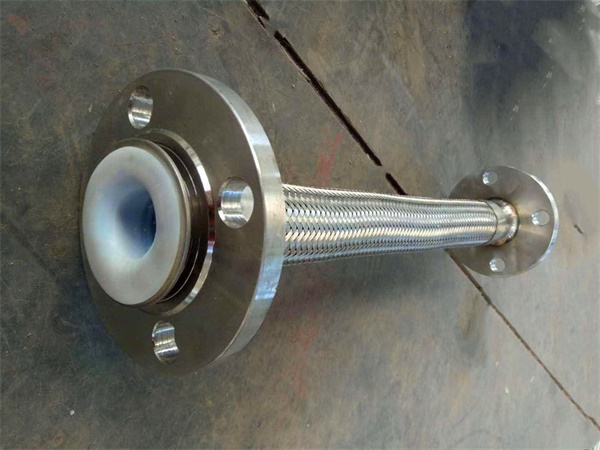

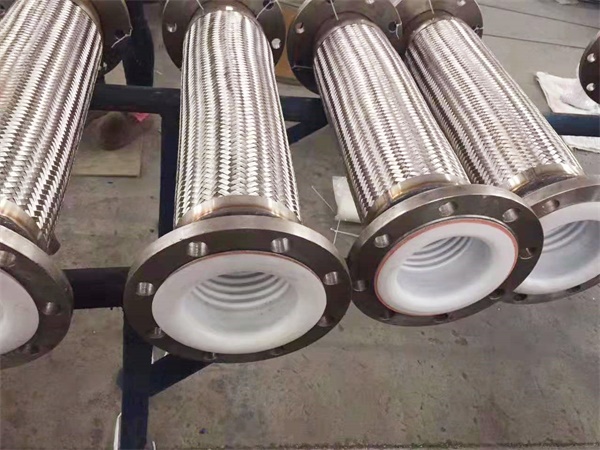

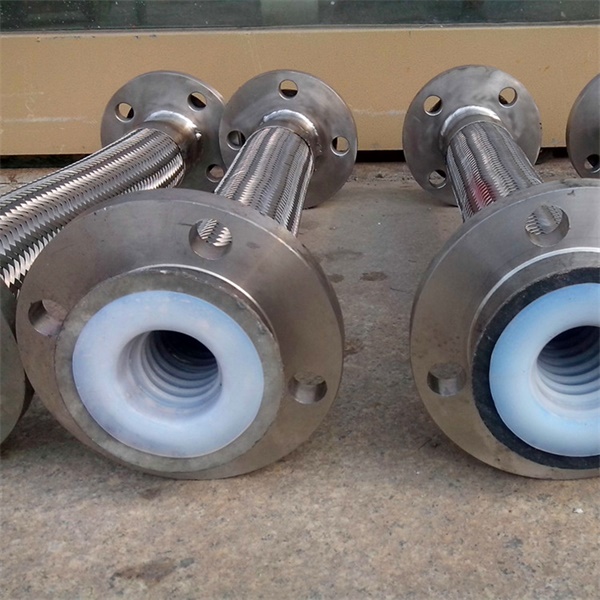

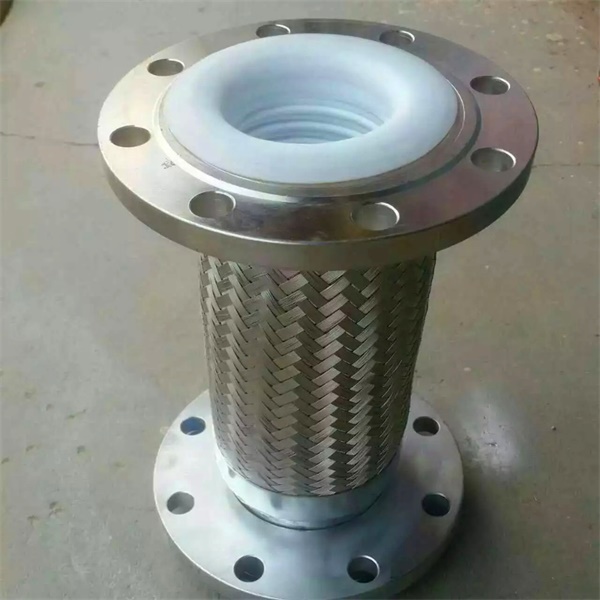

PRODUCT ALBUM

INSTALLATION INSTRUCTIONS

1. When using metal hose, please use metal hose with loose flange at one end for easy installation.
2. The surface of the metal hose should be protected during the welding work at the construction site to prevent the welding slag and arc ignition from burning the metal hose.
3. It is strictly forbidden to twist the metal hose.
4. It should not be bent along the root of the metal hose and should not be bent.
5. The medium to be passed must not be corrosive to the bellows material.
6. Strict installation and installation of the correct installation method.
7. Mechanical damage to the flange sealing surface is strictly prohibited.
