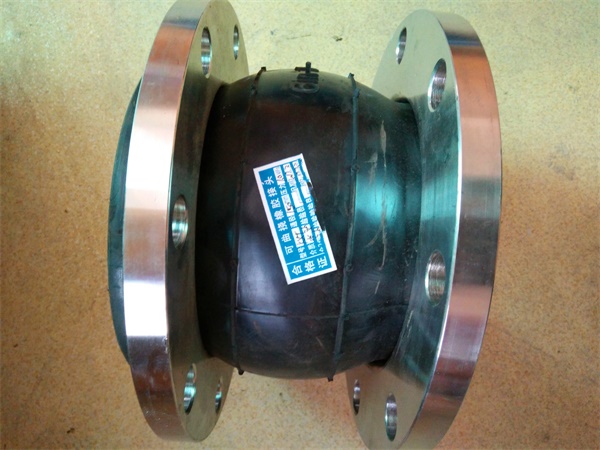

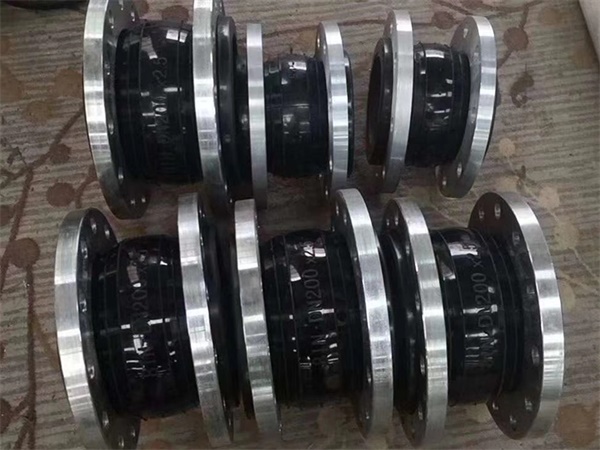

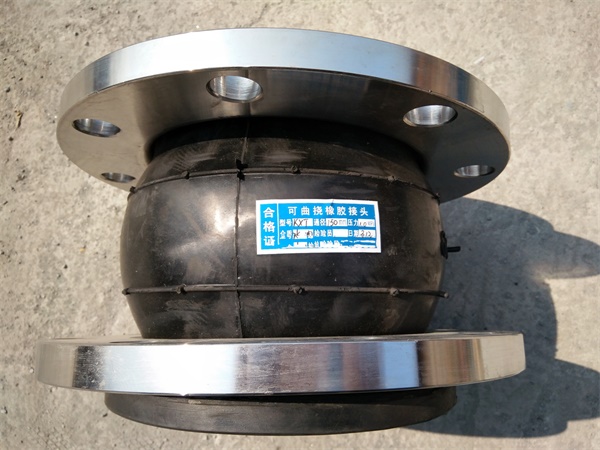

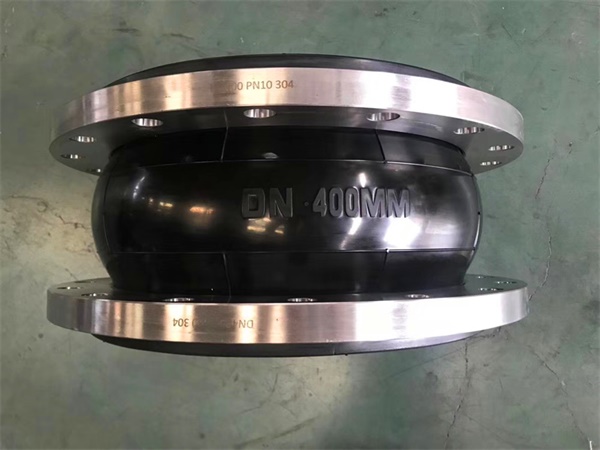

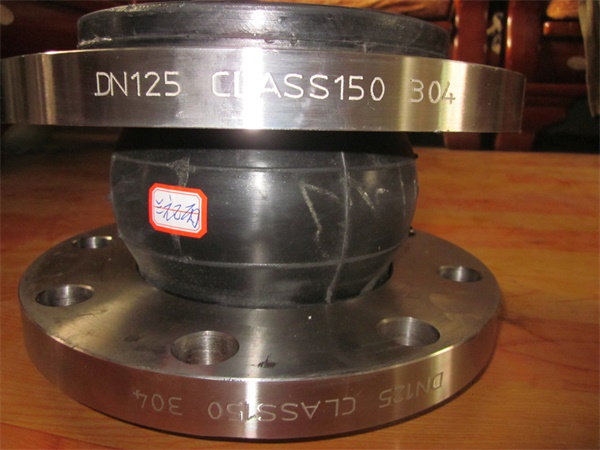

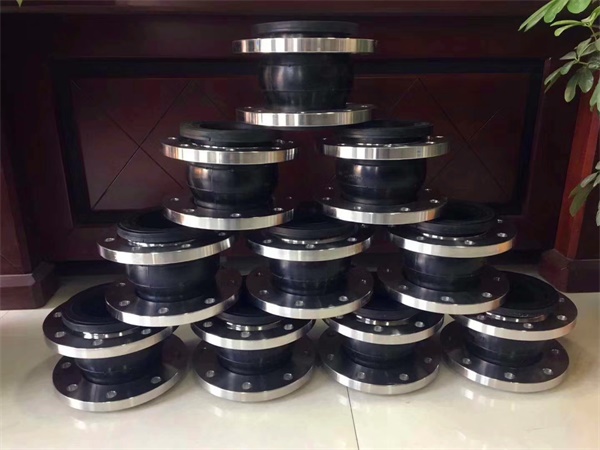

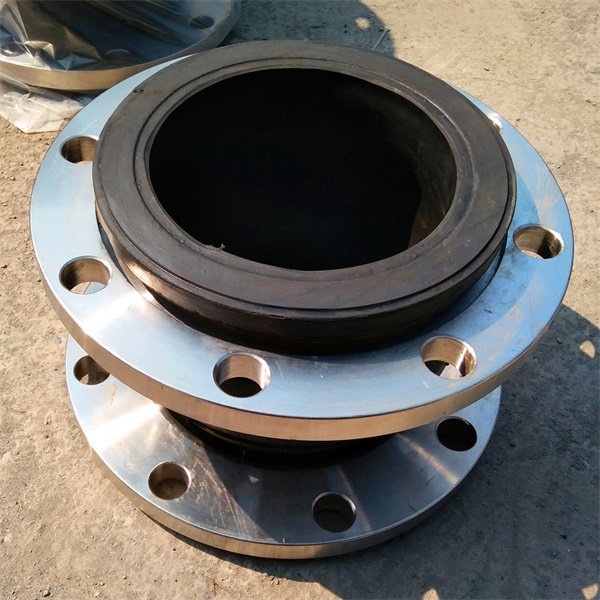

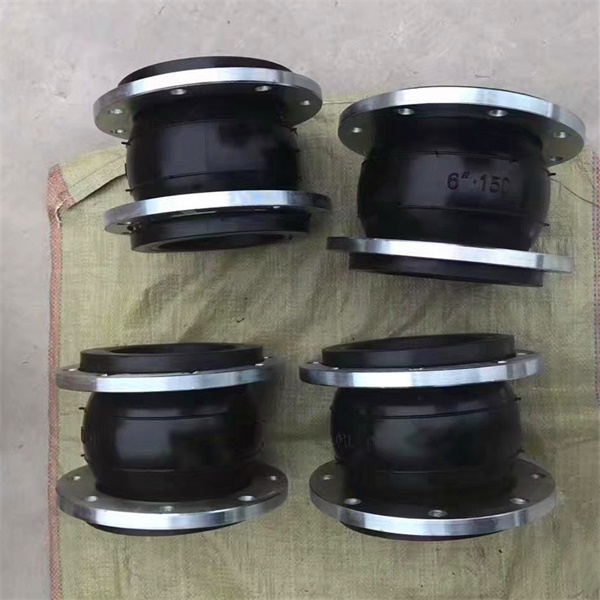

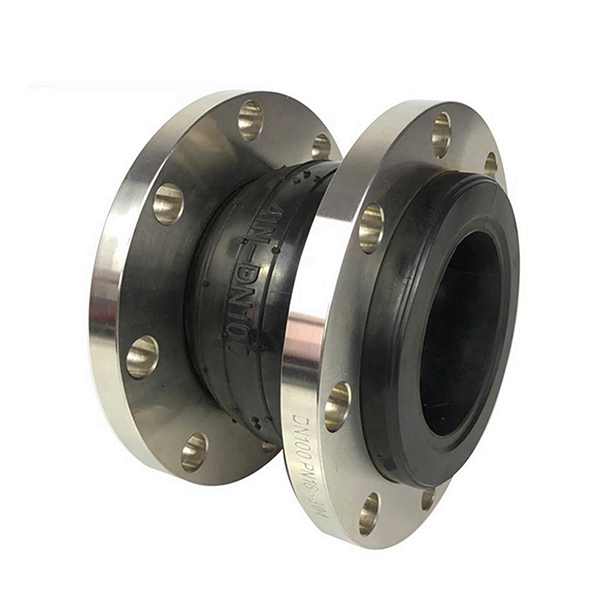

Stainless steel flange rubber joint

Rubber expansion joints are flexible connectors made of natural or synthetic elastomers and fabrics. Stainless steel flange rubber joints are widely used in pipelines with different pressures and media. Thermal growth, equipment movement, vibration or pressure fluctuation may cause movement in the pipeline system. When this motion is not absorbed by the pipeline system itself, stainless steel rubber joints are the perfect solution.

Features

Vibration absorption, noise reduction, high pressure resistance, good elasticity, large displacement, balance pipe deviation, easy installation

Dimension: DN32mm-DN3000mm
Product pressure: 0.6-2.5 MPa
Flange material: carbon steel, stainless steel (304.316)
Service temperature:– 40 degrees to 80 degrees (can also process high temperature resistant rubber joints)
Applicable media:acid, alkali, corrosion, oil, hot water, cold water, compressed air, compressed natural gas, etc.



Reducing Fatigue Coefficient:

In view of the inherent characteristics of natural and synthetic elastomers, due to the steel and rubber interfaces of joints and flanges, they will not suffer from fatigue damage or embrittlement, and can prevent any electrolysis.


Minimum Face-to-Face Size while Absorbing Large Motion:

Rubber expansion joints have the smallest face-to-face length, providing excellent movement in the direction of axial compression, axial extension and lateral deflection, as well as in the direction of angle and torsion.


Excellent wear and corrosion resistance:

A wide range of natural, synthetic and special purpose elastomers and fabrics can be used by the industry. Processing and assembling of materials to meet various actual pressure/temperature operating conditions, corrosive erosion, wear and erosion.


Due to the inherent flexibility of rubber, spring stiffness is low:

The inherent flexibility of rubber expansion joints allows almost unlimited bending to recover from the imposed motion, requiring relatively small forces to move, thereby preventing damage to power equipment.

Nominal Diameter(DN)		Length L	Axial displacement		Horizontal Isplacement	Angular deflection
mm	inch	mm	Extension	Compression	mm	(a1+a2)
32	1¼	95	6	9	9	15º
40	1½	95	6	10	9	15º
50	2	105	7	10	10	15º
65	2½	115	7	15	11	15º
80	3	135	8	19	12	15º
100	4	150	10	19	13	15º
125	5	165	12	20	13	15º
150	6	180	12	25	14	15º
200	8	210	16	25	22	15º
250	10	230	16	25	22	15º
300	12	245	16	25	22	15º
350	14	255	16	25	22	15º
400	16	255	16	25	22	15º
450	18	255	16	25	22	15º
500	20	255	16	25	22	15º
600	24	260	16	25	22	15º

NOTES:

Flange is available with DIN Standard,ANSI Standard,JIS Standard,and BS Standard.
The size is available DN32- DN3000
Please sent us letter and drawing for customization if you have special requirements.
If this product is used for supplying water for high place, anti-pull-off device should be installed if the pipe has or fixed bracket is not as no fixed stay or fixed bracket or the force of fixed bracket is not large than axial force.

Flexible rubber expansion joints shall not exceed the displacement limit during installation.
In the installation of bolts to be symmetrical, to gradually pressure and tighten, to prevent partial leakage.
When the rubber expansion joint is laid flat, suspended, and vertically installed, the actual working axial displacement pressure of the rubber joint should be less than the supporting force of the pipeline, otherwise the anti-lifting device should be installed to prevent the work from being pulled.
The installation location of the rubber joint should be kept away from the heat source and ozone area. It is strictly forbidden to irradiate with strong radiation, expose to the sun and use the medium that does not meet the requirements of this product.
When the rubber connector is transported, loaded, unloaded or installed, it is strictly forbidden to sharpen the surface sealing surface.
When installing DN200mm or above, please use butterfly valve special flange or small diameter flange for mating flange, so as to avoid flange pull-out, misalignment, sealing surface fracturing and water leakage after installation.
