PERFORMANCE

• 


  Product advantages:

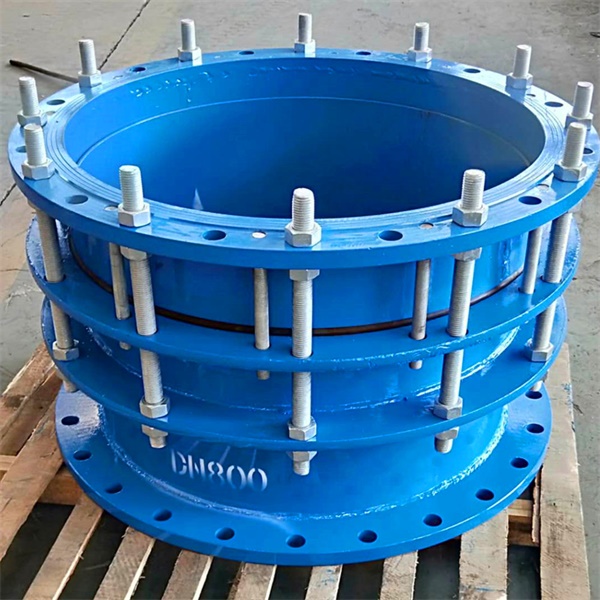

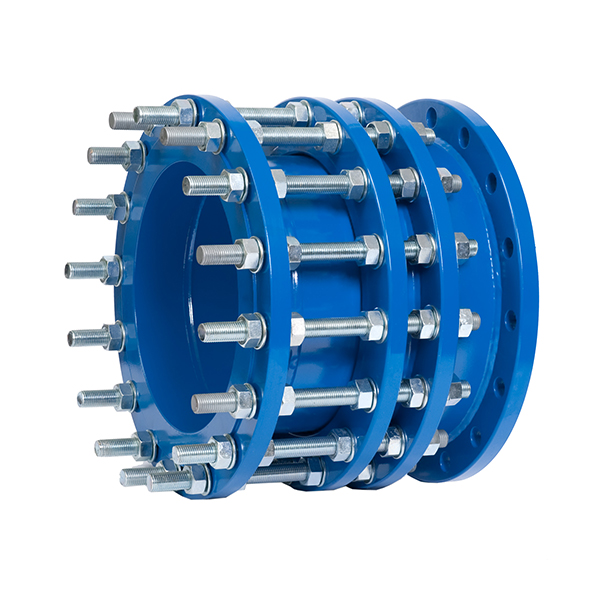

  CC2F double flange dismantling joint : After being installed on the pipeline, it is limited according to the required telescopic expansion and contraction distance, and the nut is tightened. The elastic sealing ring relies on the inclination of the nut under the action of the nut gland, and is pressed against the outer ring of the pipe. Sealing and connecting function, mainly connected with the pipeline valve not only plays the role of pipeline compensation, but also facilitates the maintenance and replacement of the valve.
  1 The installation is simple and convenient, which is beneficial to the disassembly and maintenance of the pump valve.
  2 long service life and stable operation.
  3 can reverse the axial thrust of the pipeline to the entire pipeline to avoid local compression.

• 


  Application:

  CC2F double flange dismantling joints are suitable for conveying seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam and granular powder with a temperature not higher than 250 degrees. medium.
  It is mainly used to transfer the internal force of the pipeline to avoid damage caused by the products applied in the pipeline system due to excessive concentration of the force, so it is used in various types of pipeline systems.

• 


  Performance:

  The CC2F double flange dismantling joint is suitable for the pipeline connecting both sides and the flange. When installing, adjust the installation length of the two ends of the product and the flange, and evenly tighten the gland bolts in the opposite direction to make it a whole and have certain The amount of displacement is convenient for installation and maintenance, and is adjusted according to the size of the site. The axial thrust can be transmitted to the entire pipe during operation. The strength of the compensation joint body shall be able to withstand the pressure of 1.5 times the nominal pressure, and the pressure shall be kept for 5 minutes without leakage and obvious plastic deformation. The compensation joint sealing pair shall be able to withstand the pressure of 1.25 times the nominal pressure, and the pressure shall be kept for 5 minutes without leakage.

• 


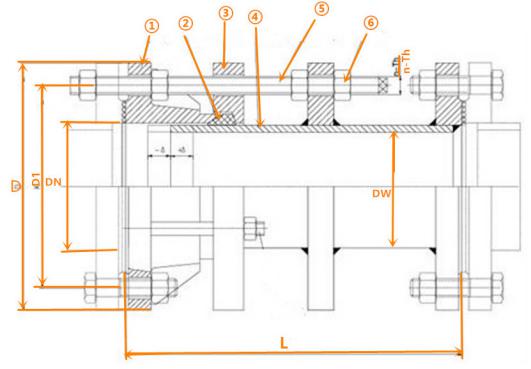

  Structure:

  1.CC2F double flange dismantling joint main metal parts material
  2.remove the joint parts
  Carbon steel or stainless steel disassembly joints (compensation joints), nominally through ≤ 400mm, the limit of short pipe, short pipe flange cylinder should be used seamless steel pipe.
  The carbon steel reinforcement for the compensation joint (disassembly joint) shall be hot-dip galvanized. The surface of the parts of the compensation joint (disassembly joint) shall be free from cracks, crusting, folding, delamination, etc., and shall not be scratched, grooved or collided. A significant depression formed.
  3.the limit screw
  4.surface protection: carbon steel, ductile iron disassembly joints used for corrosive media such as seawater, the surface of the device should be specially coated with plastic coating or hot-dip galvanizing or nickel-phosphorus coating, carbon steel for medium such as oil, Ductile iron compensating joints, the surface of the machine should be epoxy coated or coated with anti-rust paint on the surface.

WORKING PRINCIPLE

PRODUCT PARAMETERS

NOTES:

1. Flange is available with DIN Standard,ANSI Standard,JIS Standard,and BS Standard， GOST Standard, EN Standard
2. The size is available DN65- DN3200
3. Please sent us letter and drawing for customization if you have special requirements.
4. If this product is used for supplying water for high place, anti-pull-off device should be installed if the pipe has or fixed bracket is not as no fixed stay or fixed bracket or the force of fixed bracket is not large than axial force.

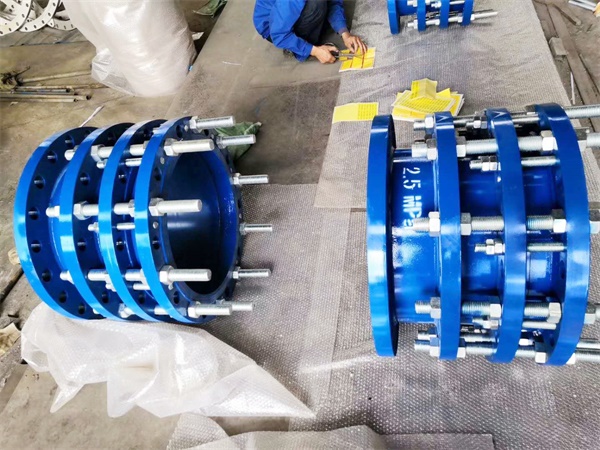

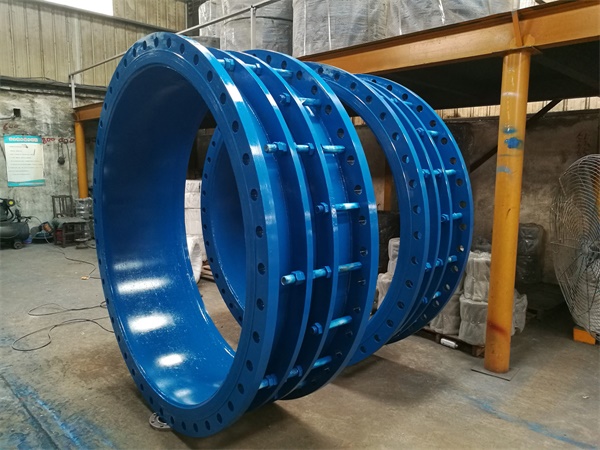

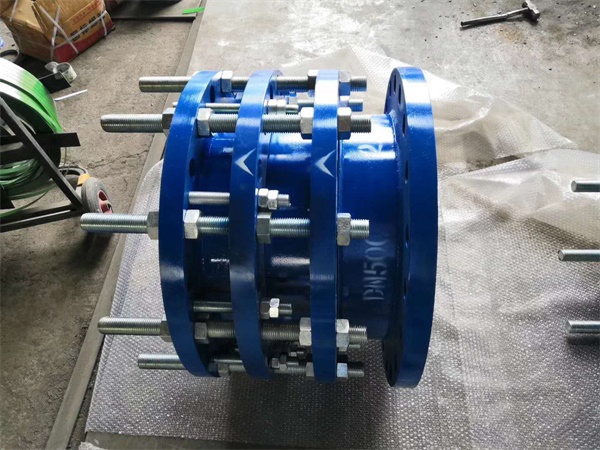

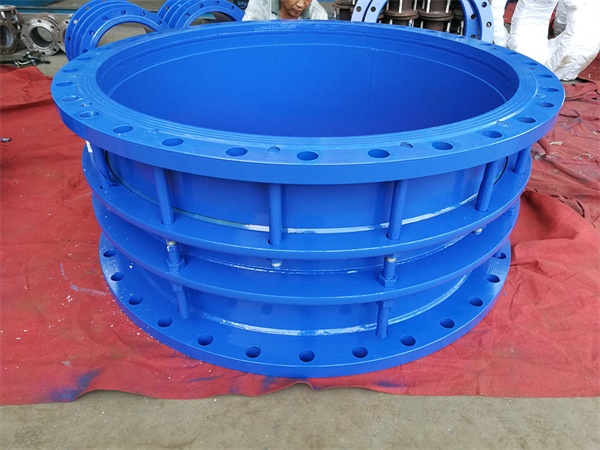

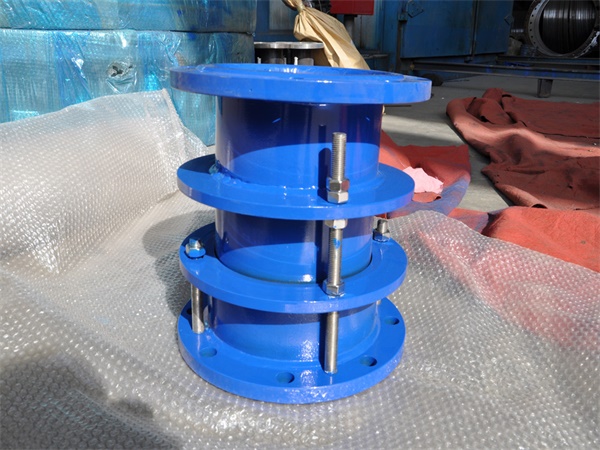

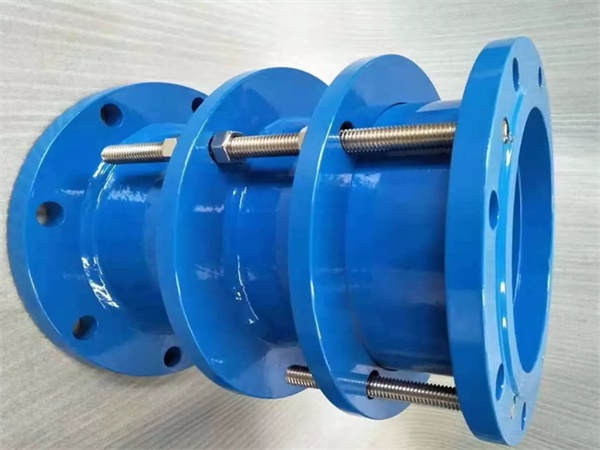

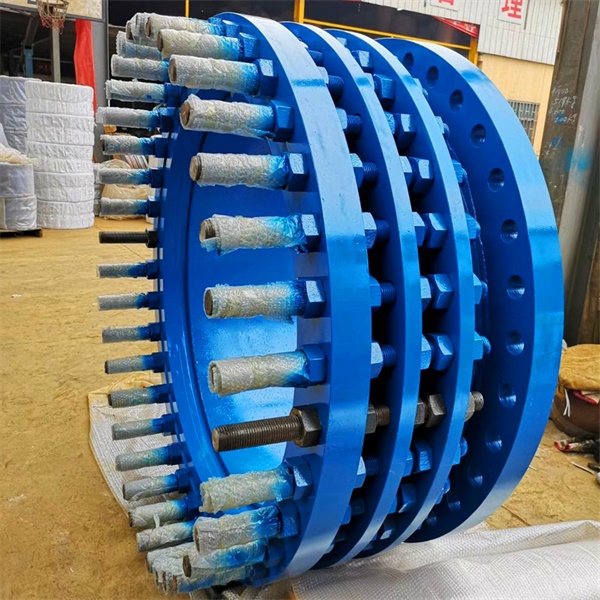

PRODUCT ALBUM

INSTALLATION INSTRUCTIONS

1. Loosen the middle gland nut first, so that the sealing ring is almost inoperable, then adjust the short tube. The adjusted size is 1/2 ΔL, then adjust the joint and remove the first nut of the stud. Install the end of the pipe so that the pipe is centered and the head of the stud is aligned with the pipe flange hole.
2. The nut pressurization should be symmetrical and gradually tighten.
3. Then install the other end flange, the analogy.
4. Gradually press the gland nut symmetrically to fit.
5. When working, it is found that the partial seal is not strict. The gland nut can be partially pressed to prevent leakage. The seals at both ends are not tight, and the nuts at both ends of the flange are gradually tightened until they are leaked.
