(Application field) In indoor pipeline layout, the pipeline bypasses doors and windows or other openings, beams, columns, wall corners, etc. When the wall corner is higher or lower than the horizontal direction of the pipeline, the equipment should be exhausted at high or low points respectively And drainage equipment. The primary function of this equipment is to remove the air and dirt in the lower part of the pipeline, and the pipeline equipment should have a slope.

The slope should not be too large, generally 0.003, and the slope should not be lower than 0.002. To make the water flow smooth, after the heating pipeline equipment is completed, you should check whether the coordinates, elevation, the orientation of the reserved hole, the radius of the pipeline, etc. are correct, and then use a level to perform induction correction. After the adjustment is qualified, the connection can be fixed.

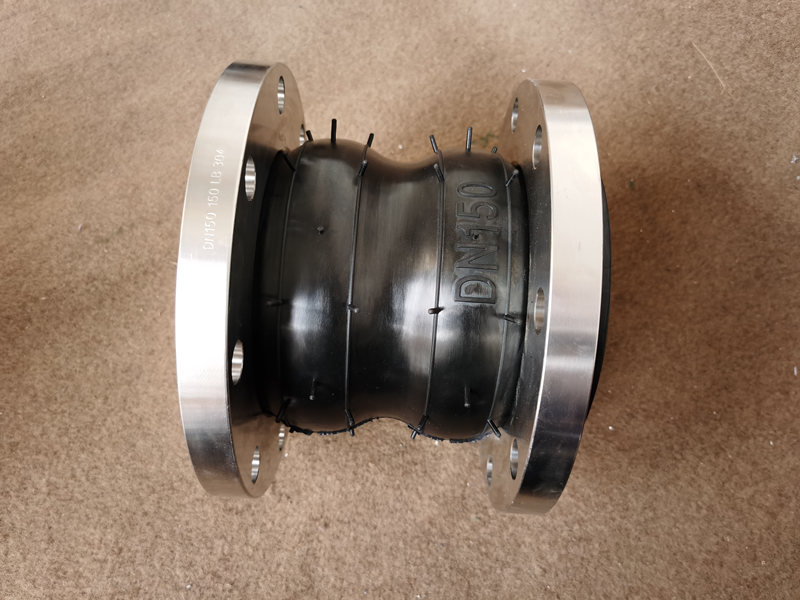

Double-ball flexible rubber joint raw material, double-ball rubber joint pipe flange connection method on both sides of the pipeline, equipment can be connected to the valve on the pipeline, mainly to compensate for pipeline contraction, reduce pipeline sensation damage to other equipment, mostly used in pumps The room and the sensational pipeline. For high-level water supply products above DN200, there must be a fixed bracket or device to prevent the device from pulling off. The product is made of a corrugated soft sleeve formed by compression vulcanization of inner and outer rubber and reinforced layers and a metal flat joint. It is resistant to high pressure. Aging resistance, large deflection position. Excellent elasticity, strong shock absorption ability, extremely convenient equipment, suitable for hotels and restaurants. Guest room. The home air conditioner is connected with the inlet of the fan-coil unit.
