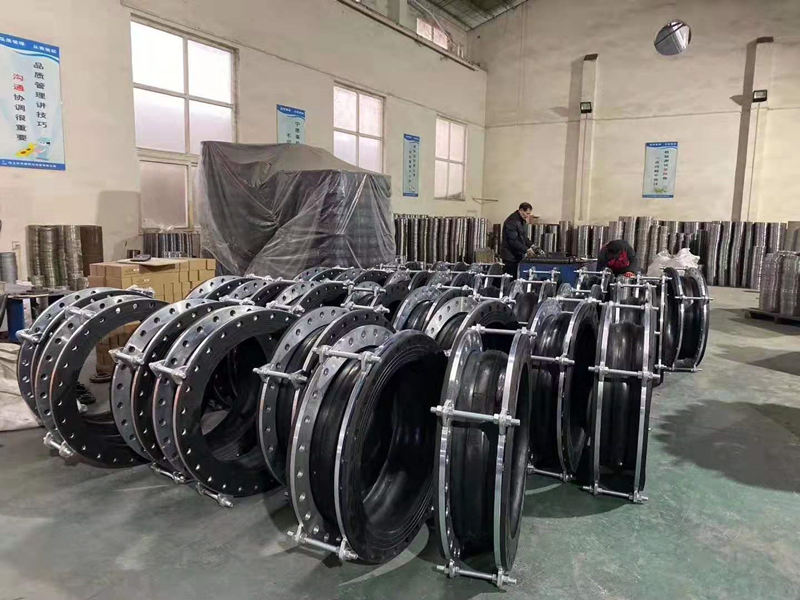

Rubber soft joints with limit pull rods are mostly used for large-diameter connections. In the case of larger diameters, the product is stabilized so that it can better exert its characteristics in work.

Type of rubber soft joint with limit tie rod: DN32-4000, the limit equipment with limit tie rod rubber soft joint and flexible rubber joint are reasonably deployed and used, and it is used in pipeline-general connection or in pipeline lines with displacement requirements. When, it can achieve the effect of limiting the amount of displacement. Rubber flexible joints with limit rods are used in thermal power plants, metallurgical industry, condensate water, chemical and chemical pipelines for transportation of raw water and sewage, water supply and circulating water for the advancement and transportation, petrochemical industry, dilution and other industrial long and short pipelines Of convergence.

Installation method of rubber soft joint with limit pull rod: When installing the rubber joint, prevent the installation beyond the displacement limit. If the pipeline pressure is too high, use limit bolts to connect the two flanges together. The equipment bolts should be symmetrical and tighten gradually to prevent partial leakage. If the working pressure is above 1.6mpa, the equipment bolts must have elastic pressure pads to prevent the bolts from loosening during operation. When installed in a straight line, both ends of the joint pipeline should be supported by vertical forces, or anti-pull-off equipment should be adopted to prevent the work from being pulled off under pressure.

The rubber joint should be far away from the heat source and ozone area, and prevent strong radiation light exposure and use of media that does not meet the requirements of this product. The rubber joint prevents the tip from scratching the outer surface and the sealing surface during transportation, loading and unloading. For overhead use, it can be equipped with elastic brackets, and the bolts should be tightened diagonally when the equipment is used. It can meet the pipe diameter requirements of various piping systems.
