Comprehensive Guide to Selection, Installation, and Maintenance of Rubber Joints for Fire Protection Pipelines: Ensuring Safe and Efficient System Operation

1. Function of Rubber Joints

Vibration and Noise Reduction: Rubber joints effectively absorb vibrations and noise in pipeline systems, protecting pipelines and equipment.

Compensation for Displacement: They can compensate for displacement caused by thermal expansion, contraction, or ground settlement, preventing pipeline damage.

Sealing Performance: They provide excellent sealing to prevent fluid leakage.

Corrosion Resistance: Suitable for conveying water, chemicals, or other corrosive media.

2. Special Requirements for Rubber Joints in Fire Protection Pipelines

High Pressure Resistance: Fire protection pipelines often need to withstand high water pressure, so rubber joints must have sufficient strength and pressure resistance.

High Temperature Resistance: Fire protection systems may involve high-temperature environments, requiring rubber joints with high-temperature resistance.

Flame Retardancy: Rubber joints used in fire protection pipelines should have flame-retardant or fire-resistant properties to ensure safety.

Aging Resistance: Rubber joints need to operate stably for long periods, so materials with aging and ozone resistance should be selected.

3. Types of Rubber Joints

Depending on the specific needs of fire protection pipelines, the following types of rubber joints can be selected:

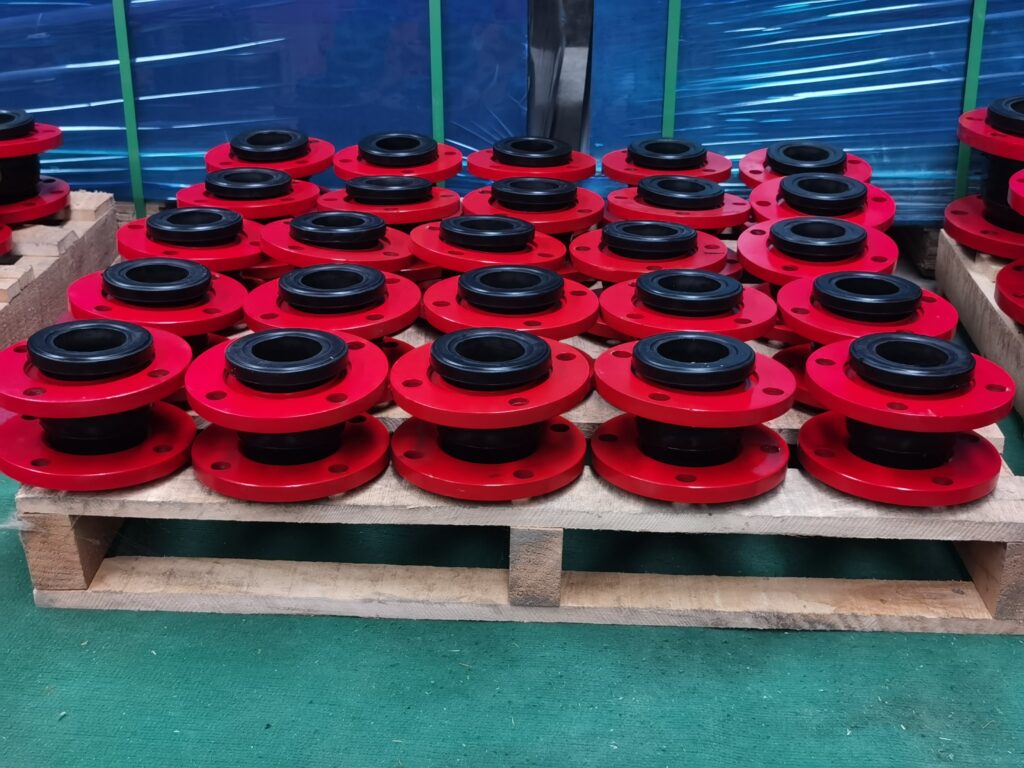

Single Sphere Rubber Joint: Suitable for general fire protection pipelines, offering good flexibility and displacement compensation.

Double Sphere Rubber Joint: Suitable for situations requiring greater displacement compensation, with higher flexibility.

Concentric Reducer Rubber Joint: Used to connect pipelines of different diameters, solving diameter transition issues.

Flanged Rubber Joint: Easy to install with flanges, providing better sealing.

4. Material Selection

The performance of rubber joints depends on the material. Common materials for fire protection pipelines include:

Natural Rubber (NR): Excellent elasticity, suitable for general fire protection water systems.

Chloroprene Rubber (CR): Resistant to oil, aging, and ozone, suitable for outdoor or harsh environments.

Ethylene Propylene Diene Monomer (EPDM): Resistant to high temperatures and corrosion, suitable for high-temperature or chemical media.

Fluorocarbon Rubber (FKM): Excellent high-temperature and corrosion resistance, suitable for special environments.

5. Key Factors for Selecting Rubber Joints

Working Pressure: Choose rubber joints with appropriate pressure ratings based on the design pressure of the fire protection pipeline.

Media Type: Select suitable rubber materials based on the conveyed media (e.g., water, foam).

Temperature Range: Ensure the rubber joint can withstand the highest and lowest temperatures in the fire protection system.

Installation Environment: Consider whether it will be exposed outdoors or to corrosive gases or liquids.

Size and Connection Method: Choose the appropriate joint based on pipeline size and connection method (e.g., flange, threaded).

6. Installation and Maintenance Recommendations

Proper Installation: Ensure the rubber joint is not twisted or overstretched during installation to avoid damage.

Regular Inspection: Check for cracks, aging, or deformation, and replace if necessary.

Avoid Over pressure: Ensure the working pressure does not exceed the rated pressure of the rubber joint.

7. Product Recommendations

Based on the customer's specific needs, the following products can be recommended:

General Fire Protection Pipelines: Single sphere rubber joint (EPDM material).

High-Pressure or High-Temperature Environments: Double sphere rubber joint (FKM material).

Outdoor or Harsh Environments: Chloroprene rubber joint (CR material).

8. Summary

General Fire Protection Pipelines: Choose single sphere rubber joints, preferably made of EPDM.

High-Pressure or High-Temperature Environments: Choose double sphere rubber joints, preferably made of FKM.

Outdoor or Corrosive Environments: Choose chloroprene rubber joints (CR).
